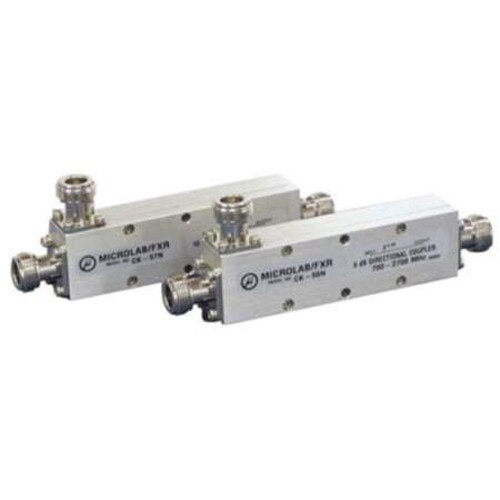

Microlab/FXR 694-2700 MHz 5dB Coupler N-Female (CK-51N)

Microlab Directional Couplers is a multi-section, quarter wave, microstrip design for indoor applications covering all wireless bands from 694 to 2,700 MHz. Unit couples off a defined fraction of a signal from (5dB) with minimal reflections or loss. The wide frequency range allows the use of multiband antennas and leaky cable systems and in wireless base stations. With minimal solder joints and an air dielectric, the dissipative loss has been minimized and reliability enhanced.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Directivity 19 dB
• RF Connectors N-Female
• Maximum Power 50 W
• Dimensions 5.35" L x .81" W x .97" H
• Mfg. Warranty for 1 year
