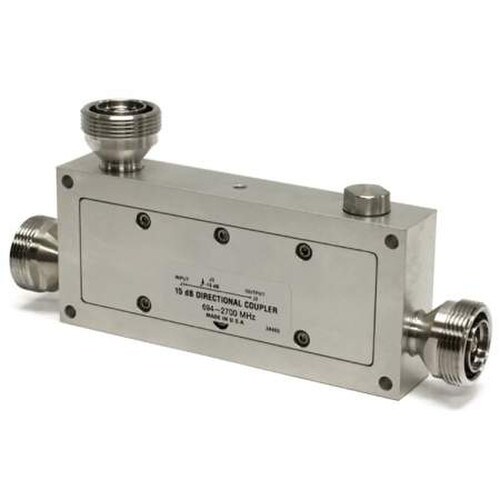

Microlab FXR 694-3600 MHz 10 dB Coupler (CK-17E)

The MICROLAB CK-17E Directional Coupler is a tapered strip line design with a frequency range from 694 to 3600 MHz. Units couple off a defined fraction of signal with minimal reflections or loss. Availability in a wide range of coupling values makes this series useful in optimizing the power distribution required in passive in building distributed antenna systems (DAS).
Key Features

• Frequency Range 694-3600 MHz
• RF Connectors 4.3-10 Female
• Nominal Coupling 10 dB
• Ultra-Wideband
• Maximum VSWR 1.20:1
• Low Specified PIM
