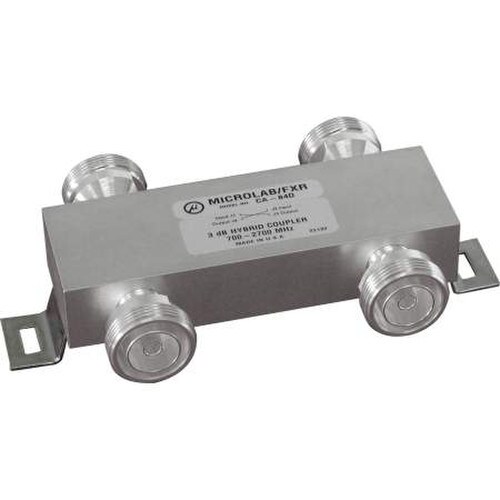

Microlab/FXR 694-3600 MHz Hybrid Coupler DIN (CA-84D)

The CA-84D Hybrid Coupler has been designed to meet the special needs of the wireless market. It is most commonly used to combine two wireless carriers in the band to a single antenna feed or distribution cable. This requires the termination of one output port with 50 ohm load and results in a 3 dB loss in each signal. In situations where two similar feeds are required, as required for an in-building application, both outputs may be used eliminating the need for a termination and the 3 dB loss.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Frequency range of 694-3600 MHz
• PIM Typical of -161 dBc with directivity of 30 dB
• Maximum power 160 W and maximum VSWR is 1.20:1
• RF Connectors 7/16 DIN Female
• Dimensions of 3.21" L x 5.99" W x 1" H
