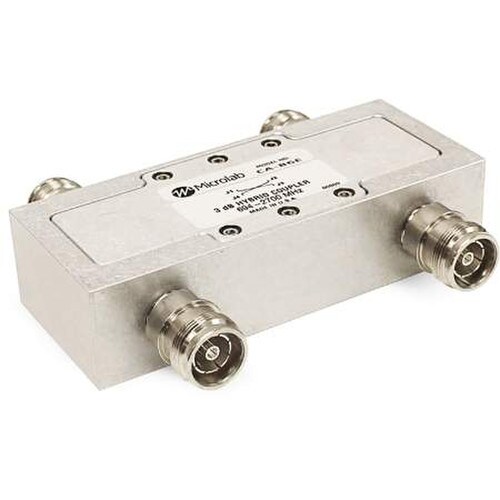

Microlab FXR Outdoor High Power Hybrid Combiner With 4.3-10 Female (CA-86EP)

The Microlab/FXR Outdoor High Power hybrid combiner is a matrix of hybrid couplers arranged so that signals applied to any of the four inputs will be split equally between the four outputs. This allows combining of multiple signals in the same wireless band to a common feeder cable, as might be required in a neutral host in-building distributed antenna system.
Key Features

• Frequency Range 694-2700 MHz
• Maximum Power 250 W
• PIM Typical -161 dBc
• Nominal Coupling 3 dB
• Coupled Loss (dB) 3
• Directivity 25 dB
• RF Connectors 4.3-10 Female
• Maximum VSWR 1.20:1
