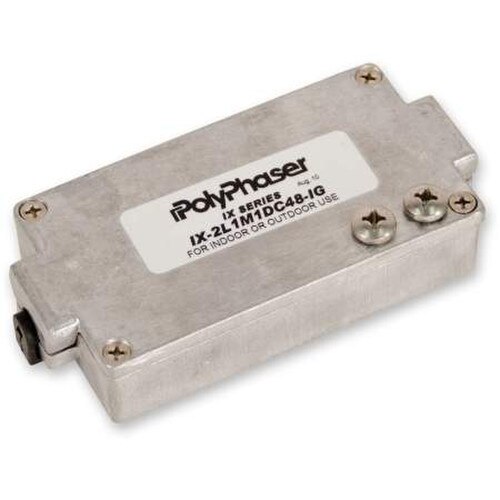

PolyPhaser T1/E1 Data Line Surge Protector Multi-Protocol (IX-2L1M1DC48-IG)

This surge protection device offers T1/E1, 48 Vdc data line protection with isolated grounding. It has passed a 70 MPH wind driven rain intrusion test. It’s fully weatherized after proper installation of grommets and torquing of lid. Solid Signal is your best source for this data line surge protector from PolyPhaser.

Key Features:

• Surge protection device
• T1/E1, 48 Vdc data line protection
• Meets Bellcore #TA-NWT-000487 procedure 4.11
• UL 497B strike voltage
• Dimensions (Inches): 2.5” x 4.1” x 1.1”

Tech Specs:

• Mount Type: Panel mount
• Standards: Bellcore 1089 10/1000µs 100 A
• Ground Type: Isolated ground
• Connector: Screw terminal
• Data Rate: Up to 25 Mbps
• Turn On Voltage: ±31 Vdc @ 10mA
• Weight (Pounds): 0.7 lbs
