Solid Signal Non-Penetrating Roof Mount for Antennas (SKY32816)

Solid Signal Non-Penetrating Roof Mount for Antennas and Dishes

Key Features and Benefits

Introducing the Solid Signal Non-Penetrating Roof Mount, a perfect solution for antenna and dish installations where drilling is not an option. This product is designed with a heavy-duty steel base that ensures stability and durability.

• Mounts antennas/dishes without drilling holes into the roof
• Comes with all necessary hardware
• Supports masts up to 2" in diameter
• Uses standard grade #2 bolts
• Manufacturers may vary

Technical Specifications

• Brace length: 22.5" (from bend)
• Struts (4) length: 22.5"
• Hole: 22" on center

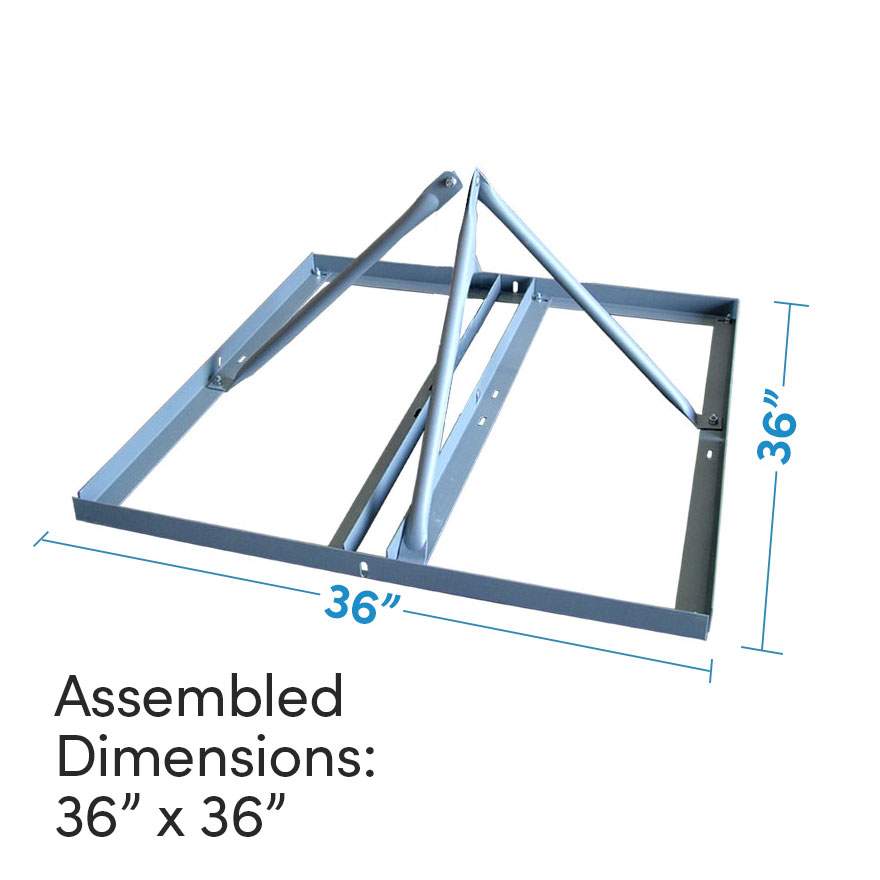

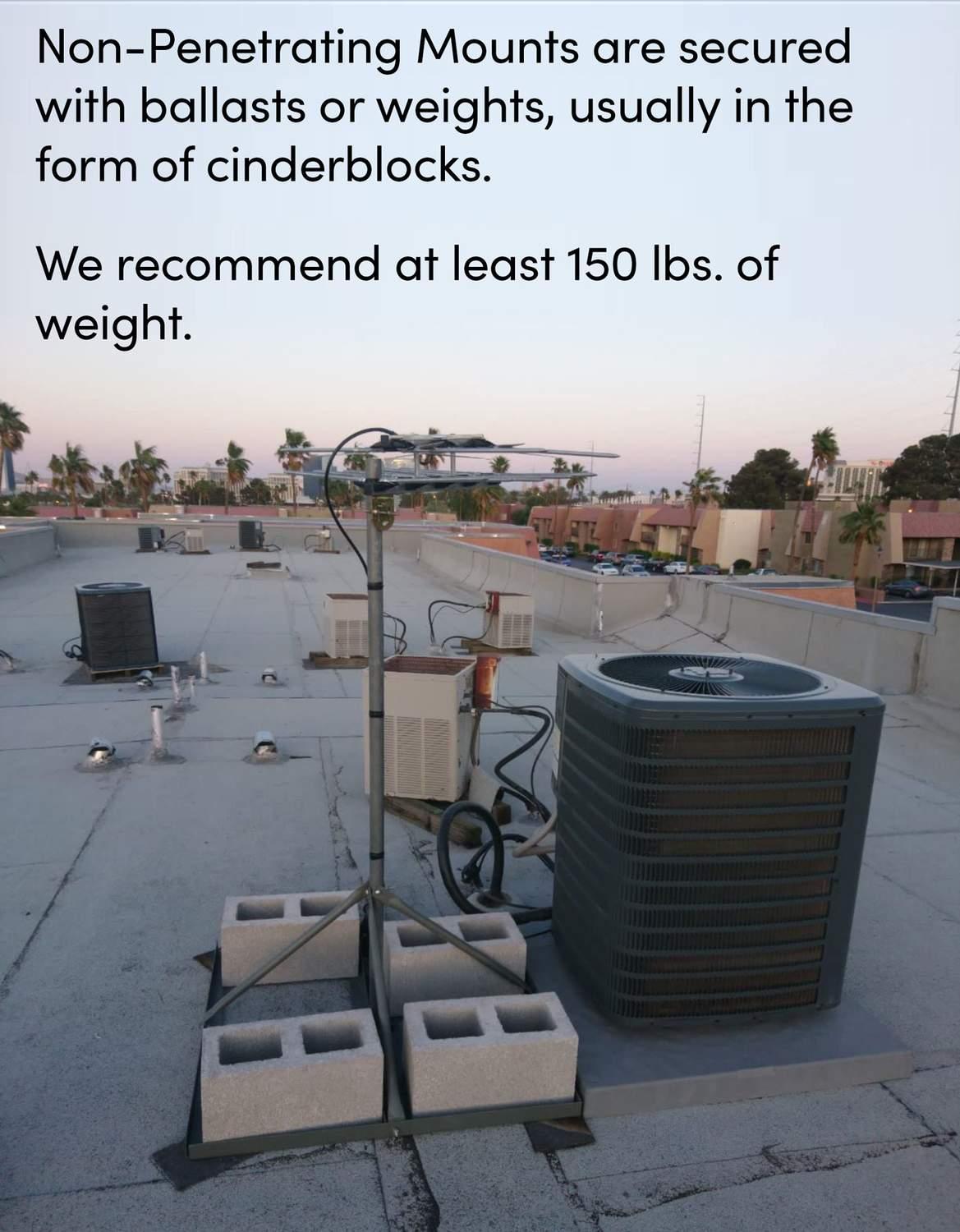

The Solid Signal Roof Mount is designed to be assembled into a 35.5" x 35.5" (up to 36" x 36") base, the perfect size for concrete blocks added for ballast. Please note that the blocks are not included. Once you secure this base, all you need to do is add a mast (sold separately) and attach your antenna or dish.

Mast Options

Masts are not included with the Solid Signal Roof Mount, but can be found at the following links:

• 1-1/4" O.D. Mast suitable for TV antenna, radio, and wireless internet SKY32817A
• 1-5/8" Mast suitable for older DIRECTV and DISH satellite dishes SKY32817B
• 2" Mast suitable for Super DISH and newer DIRECTV satellite dishes SKY32817C

With the Solid Signal Roof Mount, you can enjoy the convenience of a non-penetrating mount and the confidence of a secure installation. This product is a testament to Solid Signal's commitment to providing the best antenna mounting supplies.

Don't compromise on your antenna or dish installation. Choose the Solid Signal Non-Penetrating Roof Mount today for a hassle-free setup!

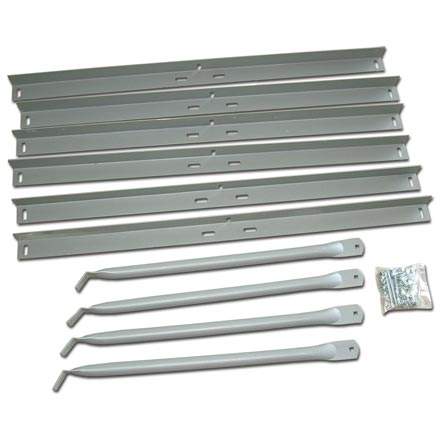

Base Dimensions:
(6) steel pieces which can be assembled from 35.5" × 35.5" up to 36" × 36"
(4) struts, each 22.5" long: Note - (these are the L-shaped angled support brackets)

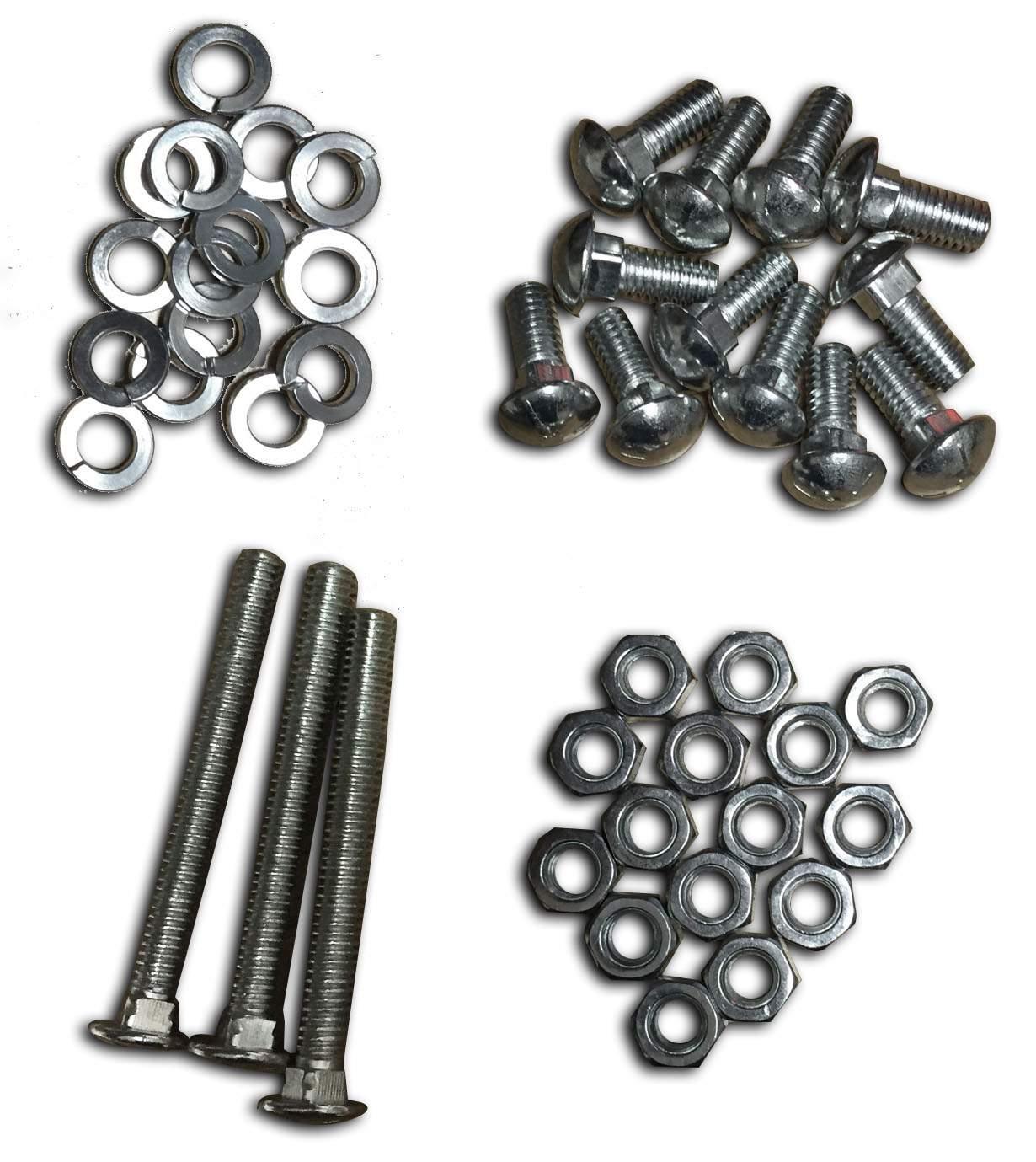

Hardware:
(3) 1/4" × 3" long carriage bolts (20 threads)
(10) 1/4" × 3/4" short carriage bolts (20 threads)
(13) 1/4" lock washers
(13) 1/4" nuts (20 threads)
