Televes DATBOSS LR Long-Range Amplified UHF TV Antenna LTE Filter (149783)
- Brand: Televes
- P\N: 149783
- UPC: 8424450185384
Do you have questions?
Please contact our experts for assistance.
Description
Televes DATBOSS LR Long-Range Amplified UHF TV Antenna LTE Filter
Long-range Intelligent antenna with the BOSSTech system. Specially designed for quality reception of UHF (DTT) under extremely difficult reception conditions thanks to its structure; optimizes the rejection against other bands.
The antenna is provided with a high-performance switch-mode power supply to feed complement the BOSS system, with a compact and pleasing design.
Key Features:
- High dynamic range: it allows the reception of high-quality TV in a variety of critical situations, from areas where signals are very weak to installations with high signal levels
- Expanded DTT coverage area: up to 27% higher than previous models
- More stable signal reception: it supports signal variations or fading with no effect on the TV installation
- Optimal C/N: thanks to a noise figure of only 1.2dB that enhances the received signal quality
- Very high gain: TForce technology provides BOSS with an increase in gain of up to 13dB
What's in the box:
- Televes DATBOSS LR Long-Range Amplified UHF TV Antenna
- Assembly hardware
- Mounting hardware
- Instruction Manual
Upgrade your TV viewing experience today. Order the Televes DATBOSS LR UHF now!
Features

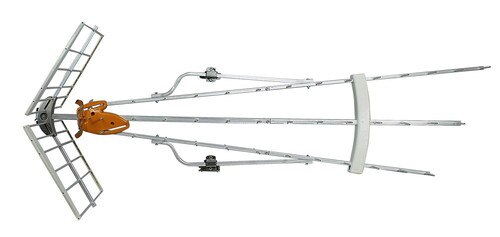

- he DAT design, based on 3 Yagi antennas with asymmetric directors, provides great directivity as well as an optimal anti-echo radiation pattern
- Special double-U dipole: it's open/close format provides optimal frequency response flatness
- A fully shielded switch box protects the BOSS system from impulsive noise; grounded for full protection against electrical discharge
- Manufactured in aluminium (stainless) for a long service life
- Fully automated manufacturing in Europe under the most stringent quality controls: a synonym of high reliability
- Two work mode options: Intelligent low power consumption mode or passive mode (lack of power supply).
TForce technology:
Televes transitions from the traditional silicon era into a new era of electronic component design, allowing integrated circuits to be precisely manufactured for microwave frequency bands. Utilizing “State of the Art” MMIC technology TForce is manufactured using semiconductor compounds such as gallium arsenide (GaAs), providing the resulting products with unparalleled features and performance
Televes has reinvented the antenna concept. Until now, an antenna was just the reception component of a TV installation in which gain and directivity were the main features. The introduction of a smart device like BOSS provides the antenna with the capacity to receive very weak signals without the risk of being affected by very strong signals, the result is a dynamic balance between weak and strong signals that provides optimum signal levels at all times: the "dynamic range" concept turns out to be the most outstanding among quality parameters.
The creation of TForce with BOSS technology using MMIC components is an extraordinary milestone in the optimization of the dynamic range. The technology that allowed the reception of lost signals from distant satellites is now allowing the enhancement of the coverage range in DTT installations.
Specifications
Bands |
| |||||
---|---|---|---|---|---|---|
Frequency range | MHz |
| ||||
Channels |
| |||||
|
| |||||
Gain | dBi |
| ||||
Output level |
| |||||
Noise figure |
| |||||
Powering | Vdc |
| ||||
Max. current |
| |||||
Beamwidth | º |
| ||||
F/B ratio | dB |
| ||||
Wind load (@80miles/h) | N | 141 | ||||
Wind load (@93miles/h) | N | 194 |
*1 The gain is automatically adjusted according to the level of output
Downloads
Reviews
14 reviews
Very pleased
by Greg
Antenna is well made, easy to assemble. Delivery was quick. I live in a fringe area of the Twin Cities with several trees in the path. The additional gain including the pre-amp made all the difference.
Disappointed
by SAM
Hoping for improved signal, I was disappointed the signal is the same as the old antenna. still pixelating at times runs 30 db the drops below 20 occasionally All channels are in UHF range. Station I want is 42 miles out.
Easy and Good
by Kathy
Quite easy to assemble if you look at both the grayscale directions AND the picture on the box. We are in a very tough location with hiss, trees, and 30-70 miles from any antenna. Even with just a single chain link top rail bungeed to a fence and some trees nearby I get almost 20 at 70% signal! lWith 2 pieces and better clearance we get 30 plus stations. Quite tough, doesn’t bend if you breathe on then like the cheap yagi type.
Better than expected
by Jim Brewer
I'm at least sixty mile from UHF braodcasters , with tall tree coverage Around my house and two ridge lines between me and transmitting towers. I expected to receive about 12 channels. I got 22, and another 5 when I connected the booster. Very satisfied.
Works well
by John Getz
Great antenna. Not "easy" to assemble, took a while but appears worth it. Had to buy a telescopic mast elsewhere though, too expensive here.
Televes long range datboss amp. Ant .
by Dan
Works great 70 miles.fromtv station we like to watch
Does the job
by Dan
Purchased this to help acquire three different UHF channels that I was having trouble picking up with my 91XG. Transmitters are approximately 70 miles away and somewhat blocked by terrain, and generally the 91XG would pick up two channels at night, while the other one channel would only come in on very clear nights. It didn't acquire the one channel I was hoping to receive with better regularity, but I did get better reception on the other two channels during the day enough to receive a stable picture with some drop out depending on the weather. I don't have a rotor on the setup yet so it is in a fixed direction but may add one later. Impressed by the sturdy construction of the antenna compared to some others I've had in the past.
accept no substitutes
by Antenna engineer
The market is now full of knock offs but none can come close the Televes antennas that started it all. This antenna is built of heavy gauge durable materials to last for many years and it's preamp provides enough signal to run every tv in the house. The Televes triple boom design produces the maximum gain, beamwidth, and bandwidth possible in an antenna that size. I admit i was a skeptical until i tested one against our reference standard UHF antennas on our far field antenna test range, but it actually delivered better UHF performance than larger industry standard corner reflector yagi designs.
This is the strongest you can get
by James B
Antenna arrived quickly. Assembly instructions were 22 steps in photos. I watched the videos ahead of time and they helped. Took about 35 minutes. Overall impressions----sturdy, well made, not too massive. I installed it on top of a 15 ft mast on roof---chimney attachment and guy wires. Ran 50 ft coax inside to included amp/ 2 tv distribute box. I am in a difficult geographic location 45-50 miles from KC MO stations. Looks like all signals from 43 channels are pegged at max. No more pixellations so far. Gonna watch the Olympics clearly and on FREE TV. In a good location this antenna should pick up from 70 miles I would think.
High Quality
by Bruce
I checked out a lot of reviews prior to finally deciding on the Televes antenna. The one that I selected is UHF only however I would definitely suggest checking your area to see if VHF is required. I'm able to pickup 81 channels in the KC area. I found the Solid Signal tutorial on YouTube for great step by step instructions on assembly.
