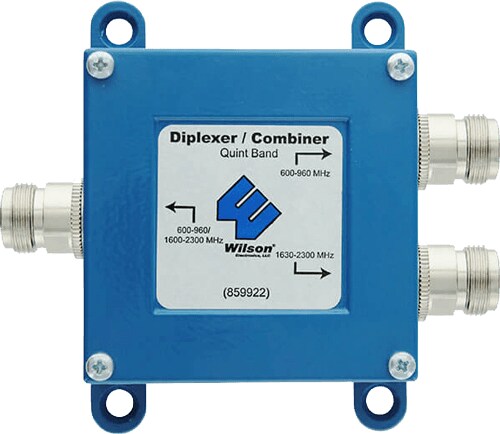

weBoost Electronics Quint Band Splitter Combiner N-Female (859922)

weBoost Electronics Quint Band Splitter Combiner N-Female (859922)

Key Features and Benefits

Experience the power of seamless connectivity with the weBoost Electronics Quint Band Splitter Combiner. This high-performance device is designed to combine two signal inputs with minimal loss, ensuring you stay connected, no matter where you are.

• Combines two signal inputs with minimum loss
• Works with 50-Ohm amplifiers and antennas
• Combines 600-960 MHz and 1630-2300 MHz
• Outputs 600-960 MHz and 1630-2300 MHz
• -3 dB loss at both ports
• N-female connectors
• 2-year manufacturer's warranty
• Works On Every Network, For Any Carrier

Technical Specifications

The weBoost Splitter Combiner is a -0.5dB 50-Ohm quint band combiner covering frequencies 600-960MHz and 1600-2300MHz. It is designed to connect two outside antennas to one dual-band amplifier or two amplifiers to one inside antenna. The splitter has N-female connectors and typically uses a 2ft cable to connect the diplexer/combiner to the amplifier. Any length can be used for the cable but the total cable length of the system should be as short as possible to minimize attenuation.

Additional Information

The weBoost Splitter Combiner can also be used to split the signal from a multi-band amplifier into 600-960 MHz and 1630-2330 MHz feeds. This is particularly useful if you have two areas with people on different cellular networks, although this is a rare situation.

Experience Uninterrupted Connectivity

With the weBoost Splitter Combiner, you can enjoy uninterrupted connectivity, regardless of your network or carrier. Its advanced technology ensures minimal signal loss, providing you with a reliable and consistent connection. Whether you're working from home, streaming your favorite shows, or staying connected with loved ones, the weBoost Splitter Combiner ensures you never miss a beat.

Don't let poor signal quality disrupt your day. Experience the power of seamless connectivity with the weBoost Electronics Quint Band Splitter Combiner. Order yours today!

Works On Every Network, For Any Carrier.
