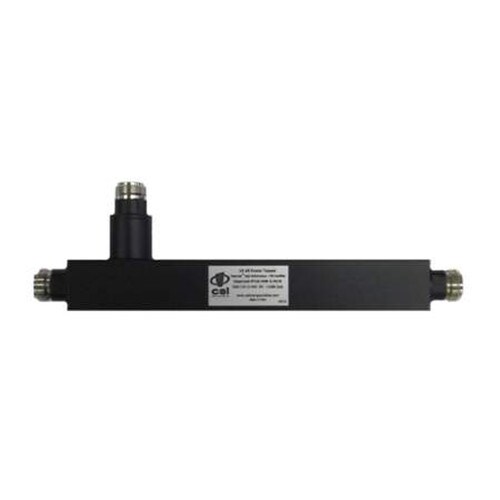

Westell 698-2700 MHz Clearlink 3 dB Directional Tapper (CS05-162-114)

Tappers operate similarly to directional couplers but with no directivity. Tappers are uniquely specified, as the value in dB is a ratio of the two output signals, not coupling value. PIM can occur when two or more signals are present in a passive, non-linear device. PIM can be generated in any passive component within a wireless communication system. Carriers are placing more emphasis on maintaining a low PIM rating on the products used in their system. These power tappers are manufactured to meet a specific PIM rating.
Key Features

• Frequency Range 698-2700 MHz
• Minimum Isolation 20 dB
• Maximum Power 200 W
• RF Connectors 4.3-10 Female
• Maximum VSWR 1.35:1
