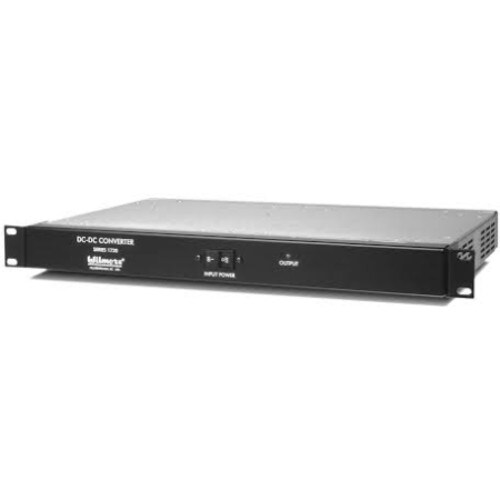

Wilmore 400-Watt DC-DC Single Output Converter (1720-130-24-16)

The Wilmore Series 1720 dc-to-dc converters provide a well-regulated dc output voltage from station batteries or other widely fluctuating dc sources. This output is galvanically isolated from the source and chassis and, therefore, may be connected either as a positive or a negative output. Applications include powering radio transceivers, telecommunications equipment, supervisory control systems and other critical electronic loads.
Designed for rack mounting, these state-of-the-art converters achieve superior electrical performance in a low profile enclosure. Conservatively rated and very efficient, Series 1720 converters will operate continuously at any load within their rating over a wide ambient temperature range with simple convection cooling. Standard options let users adapt converters to specific system requirements, including paralleling for redundancy and for additional power.
Nine single-output 400-watt models are available with different combinations of input and output voltages per the table below. Other combinations are available, including single-output and dual-output versions at power levels from 100 watts to 400 watts.
Key Features

• 2:1 input range
• Low cost, high reliability
• High efficiency, low working temperature
• Built in EMI filter, low ripple noise
• Short circuit protection
• Overload/ voltage protection
• 100 percent full load burn-in test
